Integrated Stove Head Lifting Module

This lifting module is a single integrated module,

A lifting system that integrates lifting, driving, and control,

The reliability and non lagging lifespan test shall be conducted no less than 50000 times,

Suitable for side suction and lower exhaust range hood and integrated stove head lifting.


Product Specifications and Parameters

External dimensions (opened): 900x600x1275mm

External dimensions (closed): 900x600x800mm

Air volume: ≥17 m³/min

Noise: ≤70dB

Power supply: Input around 220V~

Energy efficiency rating: Level 1

Thermal efficiency: ≥57%

Exhaust direction: Left/Right straight exhaust

Air outlet diameter: Φ180mm

Panel material: explosion-proof tempered glass

Function Description: Smart height adjustment, concealed top air intake cooktop, modular combination steam and baking unit

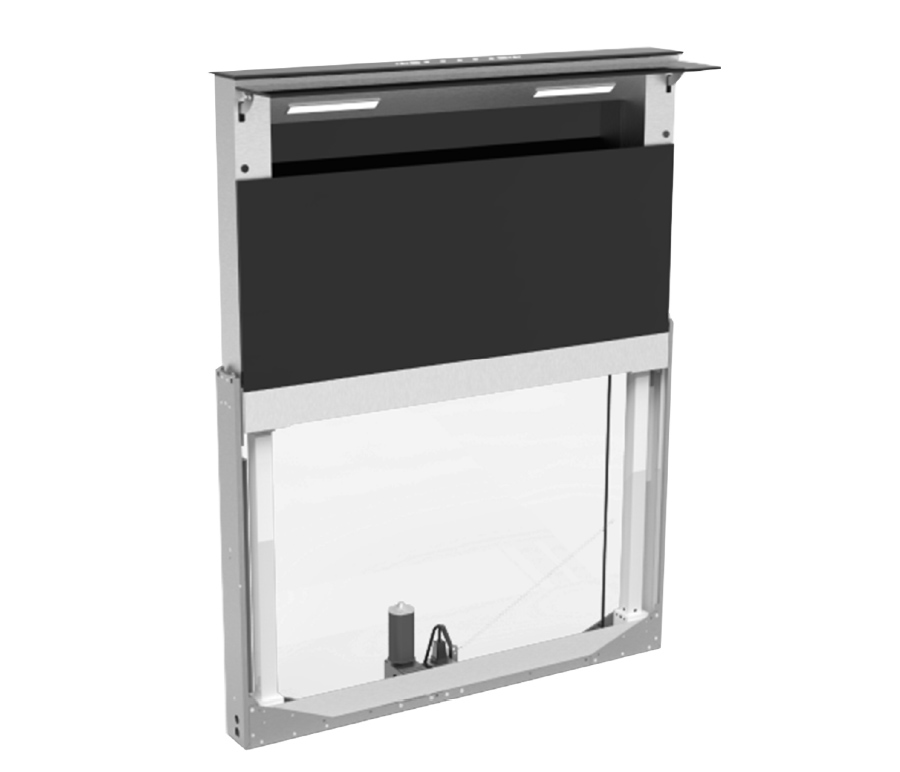

On state

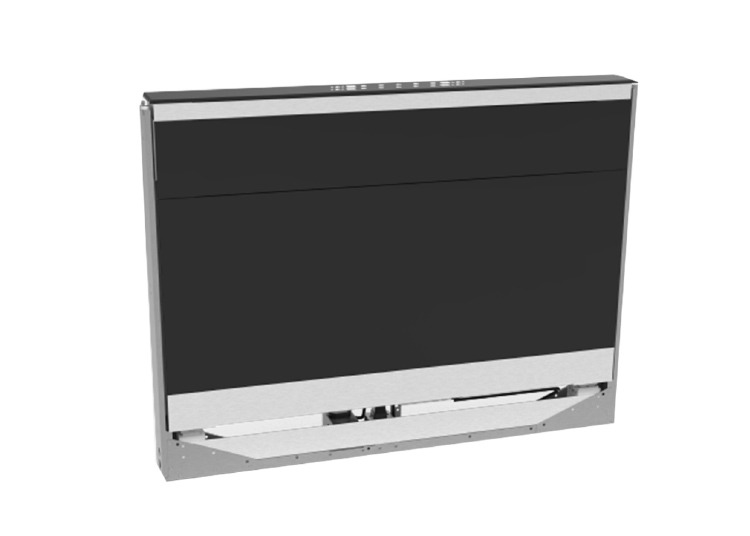

Closed status
