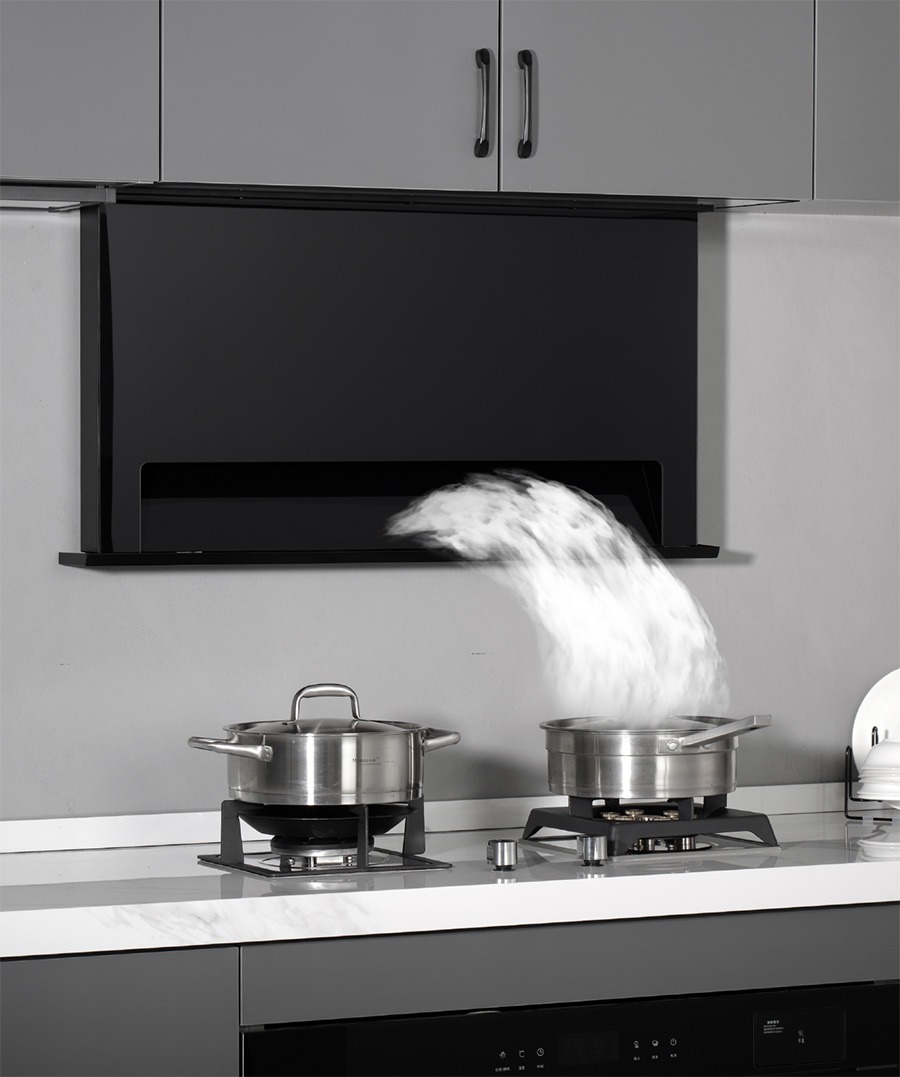

Fully concealed design makes the range hood invisible

Press button motion control to release both hands

Suitable for all kitchen environments

Shadowless

Fully concealed design, clean and refreshing, making the kitchen simple and bright, preserving more conceptual space.

Intelligence

The control methods include buttons and gesture sensing control.

Equipped with heating and self-cleaning functions, the stove is linked, with intelligent control by waving, freeing up hands, no touch, and self-cleaning.

Mute

The lifting noise is below 55DBA, and the operating noise is below 68DBA.

The noise during lifting meets the national Class I daytime noise standard and is lower than that of ordinary indoor conversations.

The noise during operation meets the mandatory national standards.

Frequency conversion

Using a fully copper variable frequency DC motor, it can achieve a static pressure of 1000PA, saving electricity and energy.

Efficient

Instantly stir fry up to 23M3 high air volume.

Product Technical Parameters

Product model: CXW-360-B01

Rated voltage: 220V~

Rated frequency: 50Hz

Rated input power of main motor: 300W

Maximum lighting power: 10W

Rated input power of the whole machine: 360W

Super suction power: 400W

Airflow: 18m ³/min (Super suction airflow of 23m ³/min)

Wind pressure (static pressure at specified air volume): 300Pa

Maximum static pressure: 450Pa

Noise: 70dB (A sound power level)

Normal odor reduction rate: ≥ 95%

Oil separation degree: ≥ 85%

Total pressure efficiency: ≥ 23%

Energy efficiency level: Level 1

Net weight: 50kg

Product dimensions (mm): 896x605x330

Product packaging size (mm): 1040x740x575

On state

Closed status

Upper concealed storage space (optional)

For the full utilization of kitchen space, every reasonable corner should not be missed.

Outline dimension diagram
