Main technical parameters

Product model: CXW-360-A01

Rated voltage: 220V~

Rated frequency: 50HZ

Rated input power of main motor: 300W

Maximum lighting power: 1.5Wx2

Rated input power of the whole machine: 303W

Super suction power: 350W

Airflow: 18m ³/min (Super suction airflow of 23m ³/min)

Wind pressure (static pressure at specified air volume: 300Pa)

Maximum static pressure: 700Pa

Noise: 70dB (A sound power level)

Normal odor reduction rate: ≥ 95%

Oil separation degree: ≥ 85%

Total pressure efficiency: ≥ 23%

Energy efficiency level: Level 1

Net weight: 50kg

Product dimensions (mm): 850x292x690

Product packaging size (mm): 900x325x770

On state

Closed status

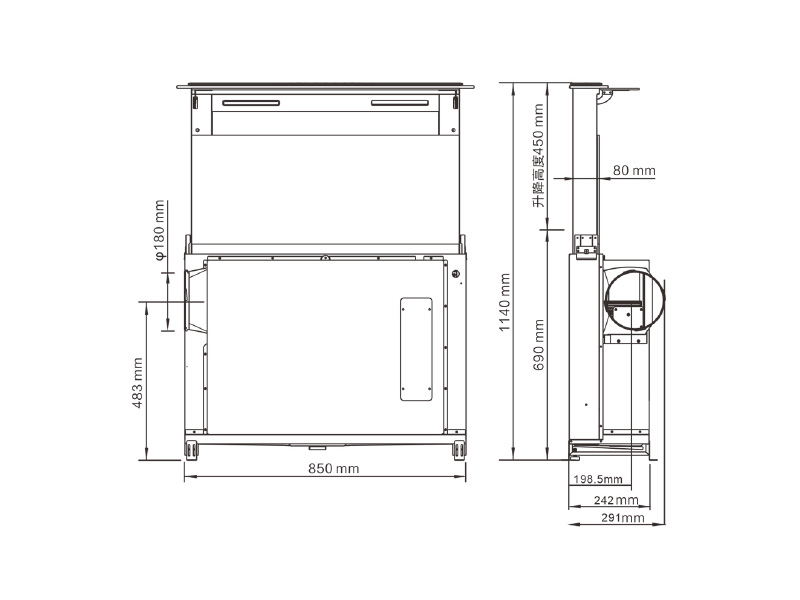

CXW-360-A01 Range Hood (Right Straight Exhaust) Outline Dimensional Drawing

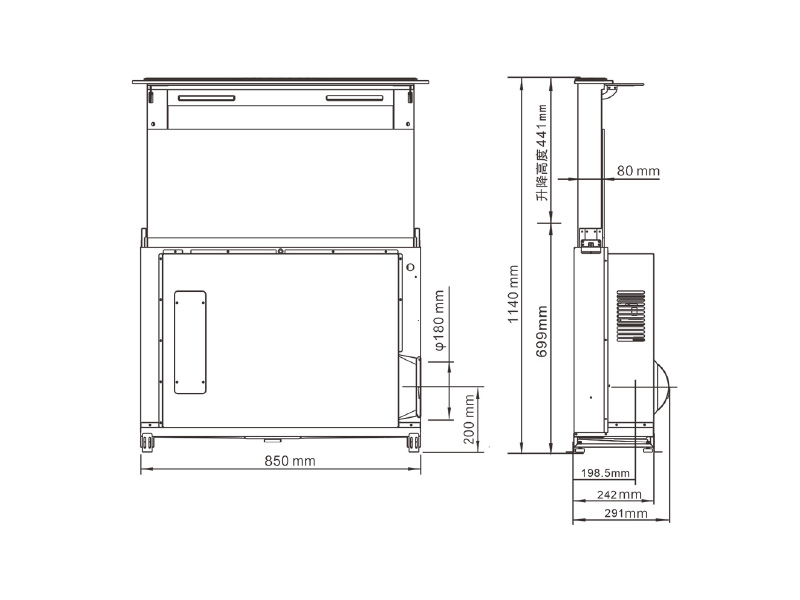

CXW-360-A01 Range Hood (Left Straight Exhaust) Outline Dimensional Drawing
